Lease Xerox® iGen®5 90/120/150 Production Press By Xerox®

This product has been discontinued.

Looking for the Xerox® iGen®5 90/120/150 Production Presses? See its replacement:

Learn More

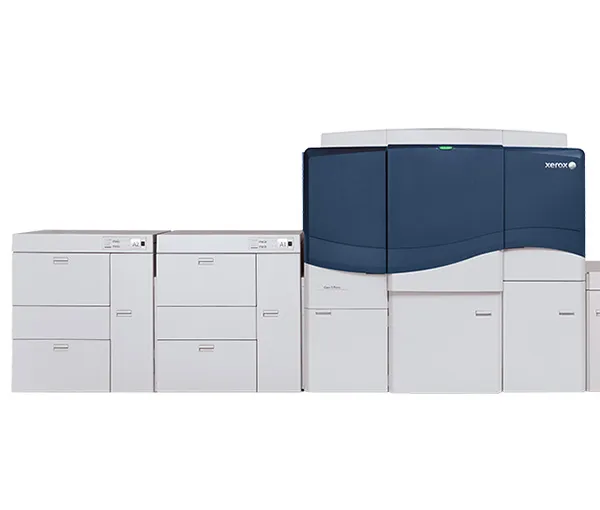

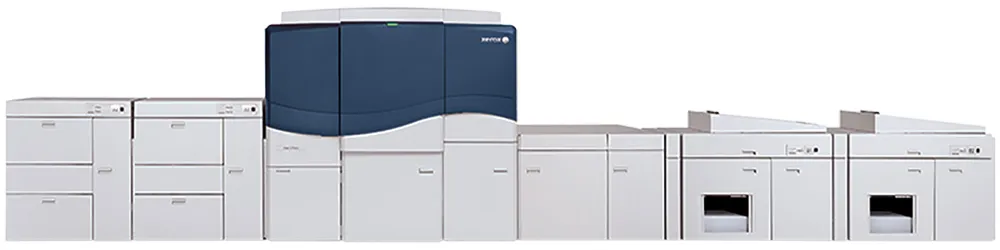

Xerox® iGen®5 90/120/150 Production Presses

Be ingenious with advanced automation, an optional 5th print station, and extra-long sheet capabilities up to 35″/889 mm.

  • Quality and productivity are guaranteed with advanced automation to print more with less cost and effort.
  • 5th print station supports the Orange, Green, and Blue Gamut Extension colors as well as White, Clear, and Fluorescent Yellow Dry Inks to create differentiation with high-value digital print enhancements.
  • 26″/660 mm or optional 35″/889 mm extra-long sheet (XLS) sizes help you expand into new markets, bigger applications, and unlock the potential to boost productivity on certain jobs up to 25% with the XLS imposition advantage.
  • Press design delivers built-in investment protection with ultimate configuration flexibility that precisely matches your current and future needs.

Key Highlights

Model Xerox® IGEN5/90 Xerox® IGEN5/120 Xerox® IGEN5/150
Recommended average monthly volume Up to 500,000 pages per month Up to 650,000 pages per month Up to 1 million pages per month
Finishing Booklet Making, Cutting, Slitting, and Folding, Stacker Booklet Making, Cutting, Slitting, and Folding, Stacker Booklet Making, Cutting, Slitting, and Folding, Stacker
Applications Books & ManualsCollateralDirect MailPhoto PublishingTransactional Promotional Books & ManualsCollateralDirect MailPhoto PublishingTransactional Promotional Books & ManualsCollateralDirect MailPhoto PublishingTransactional Promotional

Model Configuration

Model Xerox® IGEN5/90 Xerox® IGEN5/120 Xerox® IGEN5/150
Rated speed 90 ppm 120 ppm 150 ppm
Recommended average monthly volume Up to 500,000 pages per month Up to 650,000 pages per month Up to 1 million pages per month

Performance

Resolution 2400 x 2400 dpi
Line Screens 160 lpi, 180 lpi, 210 lpi, 250 lpi
Object-Oriented Halftoning intelligently and automatically selects the appropriate line screen for jobs with a mix of images and heavy text

Capabilities

Standard Capabilities Production color printing with CMYK + 5th print station for gamut extension or specialty effects
Optional Capabilities
  • 35″/889 mm extra-long sheet (XLS) (iGen 5 120 and 150 only)
  • Thick Stock Capability for high caliper media up to 24 pt/610 microns
  • Acoustic Transfer Assist uses sound waves to embed toner into media
  • Xerox® Print Inspect Solution for 100% inspection of every page
  • And more (see full Specifications for details)
Printed Sides Duplex
MICR Yes (available in select markets)

Technology

Print Engine Digital Color Press Xerography
Color Technology CMYK plus optional Orange, Green, Blue, White or Clear Dry Inks

Paper Handling

Paper sources Up to 6 feeder modules, each with 2 trays
Standard paper capacity 30,000 sheets
Maximum paper capacity with options 80,000 sheets
Media Dimensions – Minimum 7″ x 7″ (178mm x 178mm)
Media Dimensions – Maximum
  • 14.33″ x 26″ (364 mm x 660 mm)
  • 14.33″ x 35″ (364 mm x 889 mm) with XLS option
Media Weight – Minimum 60 gsm
Media Weight – Maximum 350 gsm
Up to 530 gsm with optional Thick Stock Capability
Media Types
  • Coated, uncoated, textured, specialty stocks
  • Recycled, perforated, tabs, transparencies, a wide variety of labels, synthetics, DocuCard®, Never Tear, DuraPaper®, UltraMagnet, DocuMagnet
  • Mixed-stock jobs supported at rated speed
  • No drying time before coating

Input

Other Input Devices
  • Up to six feeder modules/12 trays
  • Each tray holds 10″/254 mm (2,500 sheets 80 lb Coated Text/120 gsm)
  • Any supported stock in any tray
  • Up to 30,000-sheet capacity or more
Optional High Capacity Feeder
  • Tecnau SheetFeeder iG provides up to 50,000 additional sheets per roll
  • Optional XLS Feeder: 1,250 sheets of 14.33″/364 mm x 35″/889 mm 120 gsm coated

Output

Output Capacity Two carts per stacker; stacker cart holds 12″ (3,000 sheets) 80 lb. coated text – up to four stackers available

Finishing

Booklet Making Plockmatic PowerSquare 224 Booklet-MakerC.P. Bourg BDF-e Document Finisher, or C.P. Bourg BM-e Booklet Maker
Stacker Multigraf Stacker
Cutting, Slitting, and Folding Scoring, cutting, slitting, and perforating with Rollem JetSlit Finishing System

Print Controllers

Digital Front Ends

Environmental

Dimensions L: 20′ 2″ x W: 6′ x H: 8′ (L: 6.15 m x W: 1.83 m x H: 2.44 m)
