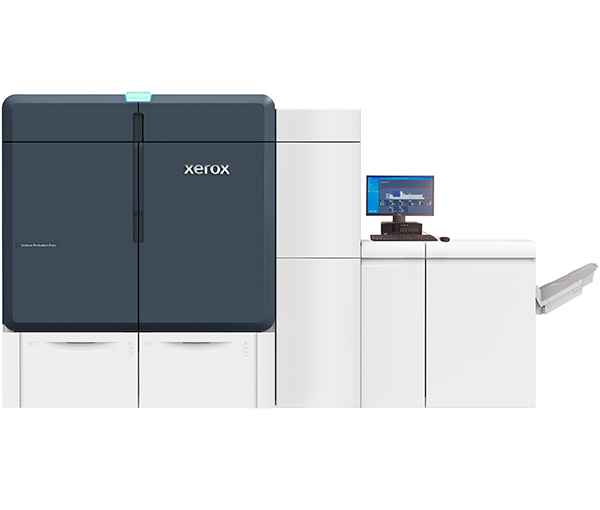

Lease Iridesse® Production Press By Xerox®

Powers a more brilliant future by delivering more “wow” impact per printed page through digital specialty enhancements.

  • Up to six inline print stations that print in a single pass, at rated speed, with spot on color-to-color registration
  • Optional White, Clear, Silver, Gold, and Fluorescent Pink Specialty Dry Inks for enhancements and Media Expansion Low Gloss Clear
  • Full Width Array, a powerful Xerox-exclusive technology that baselines the press to expedite time to production
  • Optimal performance with mixed-stock jobs supported by Mixed Media Xceleration (MMX)
  • Additional high capacity feeders and inline finishing solutions—finish landscape booklets inline using extra-long sheets (XLS)

Key Highlights

Model Xerox® Iridesse® Production Press
Page Speed Up to 120 ppm
Recommended average monthly volume 225,000 – 475,000 impressions per month

Performance

Rated speed 120 ppm (8.5″ x 11″/A4), 52-400 gsm
Resolution Ultra HD Resolution

  • RIP 1200 x 1200 dpi x 10-bit
  • Print 2400 x 2400 dpi x 1 bit
Recommended average monthly volume 225,000 – 475,000 impressions per month
Duty cycle Up to 2,250,000 impressions per month
Throughput 120 ppm (8.5 x 11″/A4 letter), all weights, 52–400 gsm (35 lb Text to 145 lb Cover)
Line Screens Halftone Screens

  • 150, 175, 200, 300 and 600 Clustered Dot
  • 150, 200 Rotated Line Screen
  • Stochastic

Capabilities

Standard Capabilities 4, 5 and 6 production color printing
Optional Capabilities
  • Specialty Dry Inks: White, Clear, Silver, Gold, and Fluorescent Pink. Add one or two Specialty Dry Ink stations in addition to the standard 4 for CMYK, for a total of up to 6
  • Optional Media Expansion Low Gloss Clear Dry Ink
  • High-capacity feeding, stacking, and finishing
  • Optional Xerox XLS Automatic Feeding Kit for productive feeding of XLS stocks
  • Inline finishing of landscape letter/A4 full bleed booklets on XLS sheets with Plockmatic PowerSquare 160 or C.P. Bourg Booklet Maker (BM-e) finishers
Printed Sides Simplex or duplex
MICR No

Technology

Color Technology Color FLX Technology (CMYK, White, Clear, Fluorescent Pink, Metallics and Mixed Metallics enhancements) with:

  • Up to six inline print stations that print in a single pass, at rated speed, with spot on color-to-color registration
  • EZ Swap for fast and easy color changes
  • Full Width Array for color stability, accuracy, and repeatability
  • Closed loop process controls for print run consistency
Fusing Technology Belt Roll Fuser
Fuser belt refresh
Ink HD EA Toners (Cyan, Magenta, Yellow, Black)
HD EA Dry Inks (White, Clear, Low Gloss Clear, Gold, Silver, and Fluorescent Pink)

Paper Handling

Paper sources 2 Standard Trays, 2 optional Advanced High Capacity Feeders with 2 trays each, Multi-Sheet Inserter (MSI) and Inserter (post-fused) for up to eight media pick points, optional Xerox XLS Automatic Feeding Kit for productive feeding of XLS stocks
Standard paper capacity Two internal trays for 4,000 sheets
Maximum paper capacity with options 12,500 sheets
Auto Duplex Auto-Perfecting up to 400 gsm
Media Dimensions – Minimum 7.2″ x 7.2″ (182 mm x 182 mm)
Tray inserter kit provided with optional Advanced High Capacity Feeder supports 4 x 6″ (102 mm x 152 mm)
Media Dimensions – Maximum 13 x 47.24″ (330 mm x 1199.9 mm)
Media Weight – Minimum 52 gsm
Media Weight – Maximum 400 gsm
Media Types Coated Papers, Uncoated Papers, Text and Cover and Specialty

Input

High Capacity Feeder Two Internal Paper Trays with 2,000 sheets each
Optional High Capacity Feeder Available in Single or Dual combinations: Two paper trays per feeder with 2,000 sheets each and Multi-Sheet Inserter (MSI) up to 250 sheets
Optional Manual Sheet Inserter (MSI): Feeds up to 250 sheetsOptional Xerox XLS Automatic Feeding Kit: Productive feeding of XLS stocks for longer print runs up to 250 sheets
Inserter Xerox® Inserter (post-fused): Up to 250 sheets

Output

Catch Tray 500 sheet capacity
High Capacity Stacker
  • 500-sheet top tray up to 13 x 47.2″ (330mm x 1.2m)
  • 5,000-sheet offset stacking; 7.2 x 8.3″ up to 13 x 19.2″ (B5 LEF to SRA3)
  • 52 – 400 gsm coated/uncoated
  • Available in Single or Dual combinations with unload while-run capability
  • Includes one removable cart for offline finishing. Additional carts available.

Print Controllers

Digital Front Ends Xerox® EX-P 6 Print Server Powered by Fiery®
IPDS licensed software option available for transactional customers

Environmental

Electrical Requirements 208-240 VAC, 60 A
