Lease Nuvera® 120/144/157 Production Presses By Xerox®

This product has been discontinued.

Looking for the Nuvera® 120/144/157 Production Presses? See its replacement:

Learn More

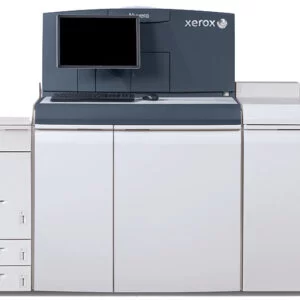

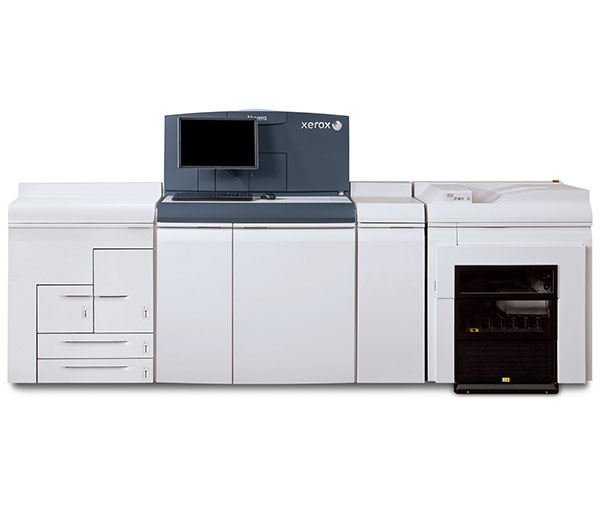

Xerox® Nuvera® 120 EA, 144 EA, 157 EA, 120 MX, 144 MX, 157 MX

Stunning image quality

  • 15 different ways to finish output inline or near-line
  • 44 gsm to 300 gsm
  • Up to 23,200 sheet feed capacity, load while run

Key Highlights

Model Xerox® Nuvera® 120 EA Xerox® Nuvera® 144 EA Xerox® Nuvera® 157 EA Xerox® Nuvera® 120 MX Xerox® Nuvera® 144 MX Xerox® Nuvera® 157 MX
Recommended average monthly volume 1,500,000 images per month 2,000,000 images per month 2,200,000 images per month 1,500,000 images per month 2,000,000 images per month 2,200,000 images per month

Model Configuration

Model Xerox® Nuvera® 120 EA Xerox® Nuvera® 144 EA Xerox® Nuvera® 157 EA Xerox® Nuvera® 120 MX Xerox® Nuvera® 144 MX Xerox® Nuvera® 157 MX
Rated speed 8.5″ x 11″ media: 120 ipm
11″ x 17″ media: 72 ipm
8.5″ x 11″ media: 144 ipm
11″ x 17″ media: 72 ipm
8.5″ x 11″ media: 157 ipm
11″ x 17″ media: 78 ipm
8.5″ x 11″ media: 120 ipm
11″ x 17″ media: 72 ipm
8.5″ x 11″ media: 144 ipm
11″ x 17″ media: 72 ipm
8.5″ x 11″ media: 157 ipm
11″ x 17″ media: 78 ipm
Resolution Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Recommended average monthly volume 1,500,000 images per month 2,000,000 images per month 2,200,000 images per month 1,500,000 images per month 2,000,000 images per month 2,200,000 images per month
Duty cycle up to 3,200,000 images per month up to 4,300,000 images per month up to 4,700,000 images per month up to 3,200,000 images per month up to 3,700,000 images per month up to 4,700,000 images per month
MICR No No No Yes Yes Yes

Performance

Resolution Print: 4800 x 600 dpi
RIP: 1200 x 1200 dpi
Line Screens 85, 106, 125, 134, or 156 lpi

Capabilities

Standard Capabilities Production printing and finishing
Printed Sides Duplex

Technology

PDLs TIFF, PCL6 (standard)
Adobe® PostScript® Level 3, PDF, ASCII, VIPP®/PostScript, PPML, LCDS and IPDS (optional)
Network Interfaces Ethernet interface (10/100BaseT; 1 GB)
User Interface 19″ flat panel monitor, USB keyboard, USB mouse
Memory 2 GB
Hard Disk 160 GB SATA

Paper Handling

Paper sources up to 3 feed modules (4 paper trays per module), plus an optional post-print insertion module
Standard paper capacity 3,200 or 5,800 sheets per module
Maximum paper capacity with options 23,200 sheets
Media Dimensions – Minimum 5.5″ x 8″ (four-tray module)
7.2″ x 8″ (two-tray module)
Media Dimensions – Maximum 12.6″ x 19.3″
Media Weight – Minimum
  • Coated: 90 gsm
  • Uncoated: 44 gsm
Media Weight – Maximum
  • Coated: 300 gsm
  • Uncoated: 300 gsm
Media Types
  • Coated: gloss, silk, matte
  • Uncoated: book, text, bond, cover, bristol, index, offset
  • Specialty: carbonless, tabs, envelopes, never tear, preprinted offset forms

Input

Electronic Input Network, CD, On-Board Storage
High Capacity Feeder
  • Standard Four-tray Sheet-feed Module: 5,800 sheets
  • Two-tray High-Capacity Sheet-feed Module: 3,200 sheets
  • Roll Feed Solution: uses DocuSheeter NV in conjunction with standard four-tray sheet-feed module
Other Input Devices
  • Post-print Four-tray Paper Insertion Module: 5,800 sheets
  • Post-print Two-tray Paper Insertion Module: 3,200 sheets
  • Integrated Scanner

Output

Stacker
  • Xerox DS-3500: 3,500 sheets, jam offset recovery/sheet-level recovery
  • Xerox Production Stacker: 2,850 sheets, unload while run with single unit, waist height delivery, jam offset recovery/sheet-level recovery
Top Tray 250 sheets

Print Controllers

Digital Front Ends Xerox® FreeFlow® Print Server

Environmental

Electrical Requirements 187-240 VAC, 50 Amp, 50/60 Hz wall service
Dimensions Print Engine: W: 43″; D: 29″; H: 61.6″
Sheet Feed Module & Insertion Module: W: 31.7″; D: 28″; H: 44.6″
Feeder Module with Integrated Scanner: W: 31.7″; D: 28″; H: 49.5″
Sheet Enhancement Module: W: 15″; D:28″: H: 41.5″
Basic Finisher Module: W: 33″; D: 28″; H: 44.6″
Basic Finisher Module Plus: W: 49″; D: 28″; H: 44.6″
Finishing Transport Module: W: 35.6″; D: 28″; H: 46.3″
Multifunction Finisher Professional: W: 56.4″; D: 28″; H: 46.3″
Multifunction Finisher Pro Plus: W: 56.4″; D: 28″; H: 46.3″
Stacker: W: 35″; D: 30.25″; H: 44.75″

Certifications

Sustainability EPEAT
ENERGY STAR®
